WAP-5000/WAP-5100 |
 |
| |
| [Overview].
|
| |
| 802.11b WLAN Outdoor
AP/Bridge |
| |
 |
|
| |
Planet Technology Corporation today announced
its WLAN Outdoor Access Point solution (WAP-5000/WAP-5100).
To improve the restrictions which physical cables
place on most networks, PLANET today delivers wireless
outdoor solutions that have removed the boundaries
of both LAN and WLAN.
PLANET 802.11b WLAN outdoor solutions include two
models: WAP-5000 and WAP-5100. WAP-5000 is a Wireless
Access Point, which is suitable for widely open
space applications such as WISPs, campuses, and
airports. Except for 64/128-bit WEP encryption,
WAP-5000 integrates 802.1X authentication, user
isolation, protocol filtering, and MAC access control
to secure the information of your wireless LAN.
WAP-5100 is a wireless bridge capable to link two
or more remote sites together with up to 11Mbps
data rate. When constructing a wireless building-to-building
link with directional antennas, it is necessary
to align the antennas for proper operation. The
intelligent antenna alignment feature of WAP-5100
helps engineers to get the quick, convenient, and
accurate alignment.
Both of the models have specially designed housing
to against the rigorous weather conditions while
they are installed in exposed locations. Provided
with SNMP-based utility, the installation and management
tasks become fast and easy. Furthermore, the PoE
(Power over Ethernet) design reduces the power cables
installation fee and provides more flexibility while
selecting the locations of WAP-5000 and WAP-5100.
|
| |
|
| [Product Application] |

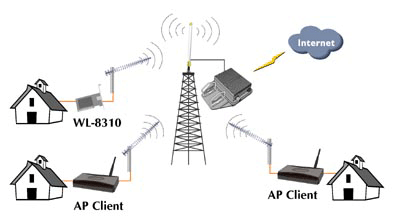

Wireless ISP
A first mile solution is now simple with
PLANET's wireless devices. No wiring is needed and
the provided bandwidth can be up to 11Mbps. By installing
WAP-5000 equipped with omni-directional antenna
in the user's neighborhood, all users around the
AP can easily connect to Internet through the access
point by installing a wireless PCI card. By using
a directional antenna, the distance between users
and WAP-5000 can be a few kilometers. |
| |
 |
| |

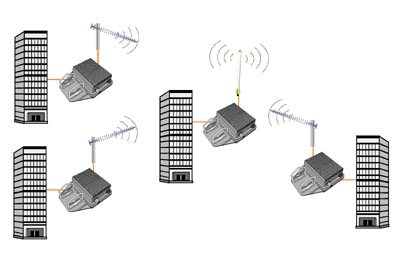

LAN to LAN or LAN to Multi-LAN
Wiring inside your own building may be an easy job,
but it is hard if network cabling needs to route
through some public areas or difficult wiring environments.
WAP-5100 is dedicated to provide a robust solution
for connecting two or more buildings' wired Ethernets
together. By using PLANET external antenna to extend
distance, the installation is easy and the distance
between buildings can be 10km or more. |
| |
 |
| |
|
| [Key
Features] |
+ Wireless LAN IEEE802.11b compliant
+ Solid housing provides protection against rigorous
weather conditions
+ Multi-level network security
+ One detachable reverse N-type male connectors
can connect to external antenna for expanding
connection distance
+ 5 levels of adjustable transmit power control
+ Intelligent antenna alignment feature in WAP-5100
+ High speed data transfer rate up to 11Mbps
+ Auto fall-back data rate for long-distance communication
and noisy environments
+ Provide powerful Windows-based SNMP utility for
installation and management
+ Support DHCP Client
+ Power over Ethernet design |
| |
|
| [SPECIFICATION] |
| |
|
Product |
| Model |
WAP-5000 |
| Standard |
IEEE
802.11b |
| Signal
Type |
DSSS
(Direct Sequence Spread Spectrum) |
| Modulation |
BPSK,
QPSK, CCK |
| Port |
10Base-TX
(RJ-45) * 1 |
| Antenna
Connector |
Reverse
N-type Male * 1 |
| Output
Power |
5
levels adjustable
100mW, 50mW, 30mW, 10mW, and 5mW |
| Sensitivity |
-84dBm |
| Operating
Mode |
AP |
| Security |
64/128-bit
WEP encryption
Password protect
802.1X security
MAC filtering
SSID Broadcast Disable function
Protocol filtering
User isolation |
| Frequency
Band |
2.4
- 2.484GH |
| Data
Rate |
Up
to 11Mbps (1/2/5.5/11) |
| Dimensions
(L x W x H) |
165
x 135 x 55mm |
| Weight |
1130g |
| Environmental
Specification |
Operating
temperature: -20 - 70 degree
CStorage temperature: -30 - 80 degree
CRelative humanity: 5% - 95% (non-condensing)
|
| Power
Requirement |
12V
DC, 2.0A |
| Electromagnetic
Compatibility |
FCC,
CE |
|
Product |
| Model |
WAP-5100 |
| Standard |
IEEE
802.11b |
| Signal
Type |
DSSS
(Direct Sequence Spread Spectrum) |
| Modulation |
BPSK,
QPSK, CCK |
| Port |
10Base-TX
(RJ-45) * 1 |
| Antenna
Connector |
Reverse
N-type Male * 1 |
| Output
Power |
100mW |
| Sensitivity |
-84dBm |
| Operating
Mode |
Bridge:
Point-to-Point, Point-to-MultiPoint |
| Security |
64/128-bit
WEP encryption Password protect Protocol filtering |
| Frequency
Band |
2.4
- 2.484GH |
| Data
Rate |
Up
to 11Mbps (1/2/5.5/11) |
| Dimensions
(L x W x H) |
165
x 135 x 55mm |
| Weight |
1130g |
| Environmental
Specification |
Operating
temperature: -20 - 70 degree
CStorage temperature: -30 - 80 degree
CRelative humanity: 5% - 95% (non-condensing)
|
| Power
Requirement |
12V
DC, 2.0A |
| Electromagnetic
Compatibility |
FCC,
CE |
|
| |
| [Ordering
Information] |
| WAP-5000.........
802.11b Wireless LAN Outdoor AP |
| WAP-5100.........
802.11b Wireless LAN Outdoor Bridge |
|
 |
| |
 |
|
|
|
|
|
|
