WAP-6000

   [Overview].

802.11g Wireless LAN Outdoor AP with Bridge


Designed with the most innovative 802.11g technology, WAP-6000 provides 54Mbps high data rate for outdoor environment, which is about 30 times faster than T1 and ADSL connection speed. There are four operating modes supported in WAP-6000: AP, AP with WDS (Bridge), Wireless Client, and Repeater. The multiple operation modes selection makes WAP-6000 suitable for widely open space applications such as WISPs, campuses, and airports. In addition to 64/128/152-bit WEP encryption, WAP-6000 integrates WPA, and WPA-PSK to secure the information of your wireless LAN.

The special designed housing allows WAP-6000 to be installed in exposed locations under the rigorous weather conditions including heavy rain, wind, and snow. Provided with web-based interface, WAP-6000 is easy to be installed and managed. The PoE (Power over Ethernet) design reduces power cables installation cost and offers more flexibility while selecting the location of WAP-6000. With all these advanced features, WAP-6000 is the ideal solution for outdoor networks.

   [Product Application]
AP mode

A first mile solution is now simple with PLANET WAP-6000. No wiring is needed and the band width
provided can be up to 54Mbps. By installing WAP-6000 equipped with omni-directional antenna in the
user¢®|s neighborhood, all users around the AP can easily connect to the Internet through the access
point by installing a wireless PCI card. By using a directional antenna, the distance between users
and WAP-6000 can be easily extended

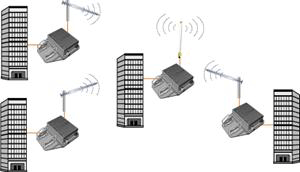

Bridge mode
Wiring inside your own building may be an easy job, but it is hard if network cabling needs to route
through some public areas or difficult wiring environments. WAP-6000 is dedicated to provide a high-
speed solution for connecting two or more buildings¢®| wired Ethernets together.


   [Key Features]
+ Wireless LAN IEEE802.11b/g compliant
+ Solid housing provides protection against rigorous weather conditions
+ Four operating modes support: AP, AP with WDS (Bridge), Wireless Client, and Repeater
+ Strong network security with 64/128/152-bit WEP encryption, WPA and WPA-PSK
+ One detachable reverse N-type male connectors can connect to external antenna for expanding
   connection distance
+ 5 levels of adjustable transmit power control
+ Super G mode raises the data rate up to 108Mbps
+ Support DHCP Client
+ Provides "Connection Status" indication for Repeater and Client modes
+ Power over Ethernet design

   [SPECIFICATION]


Product

Model

WAP-6000

Standard

IEEE 802.11b, 802.11g

Signal Type

DSSS (Direct Sequence Spread Spectrum)

Modulation

OFDM with BPSK, QPSK, 16QAM, 64QAM, DBPSK, DQPSK, CCK

Port

10/100Mbps RJ-45 port * 1

Antenna Connector

Reverse N-type male * 1

Output Power

18dBm@11Mbps / 14dBm@54Mbps (typical)
5 levels adjustable (Full, Half, Quarter, Eighth, Minimum)

Sensitivity

-74dBm@54Mbps OFDM, 10% PER
-88dBm@11Mbps CCK, 8% PER

Operating Mode

AP, AP with WDS (Bridge), Wireless Client, Repeater

Security

WEP setting
- Authentication type: Open System / Shared Key
- Shared keys input type: HEX / ASCII
- Shared keys length: (64-bit, 128-bit, 152-bit)
- Default WEP Key to use (1-4)
WPA-PSK setting
- PassPhrase
- WPA Cipher Type (Auto, TKIP, AES)
- Group Key Update Interval: 300
WPA setting
- Radius Server IP Address
- Radius Port: 1812
- WPA Cipher Type (Auto, TKIP, AES)
- Shared Key Group Key Update Interval: 300

Data Rate

Super G mode - Up to 108Mbps
802.11g - Up to 54Mbps (6/9/12/18/24/36/48/54)
802.11b - Up to 11Mbps (1/2/5.5/11)

Dimensions (L x W x H)

232 x 185 x 62mm

Weight

1130g

Environmental Specification

Operating temperature: -20 ¢®V 70 degree C
Storage temperature: -30 ¢®V 80 degree C
Relative humanity: 0% ¢®V 90% (non-condensing)

Power Requirement

12V DC, 2.0A

Electromagnetic Compatibility

FCC, CE

   [Ordering Information]
WAP-6000......... 802.11g Wireless LAN Outdoor AP with Bridge
