WAP-4030 |
 |
| |
| [Overview].
|
| |
| 54Mbps Wireless
LAN Access Point |
| |
 |
|
| |
WAP-4030 is an IEEE 802.11g Wireless Access Point.
IEEE 802.11g uses 2.4GHz frequency band, the
same with IEEE 802.11b, but provides almost 5 times
throughput rate than 802.11b. You can use this
access point to establish a wireless LAN connection
that enables users to access wireless LAN
easily.
It supports WPA-PSK, 64/128-bit WEP (Wired Equivalent
Privacy) Encryption and MAC address filter
function to consolidate the wireless network security.
Thus you can prevent unauthorized wireless
stations from accessing your wireless network. Its
data rate can support up to 54Mbps for maximizing
network efficiency while minimizing your network
investment and maintenance costs.
This product provides a friendly user interface
and allows users to configure from web browser.
Without utility installation, users are not required
to find the utility from the long list of programs.
|
| |
|
| [Product
Application] |

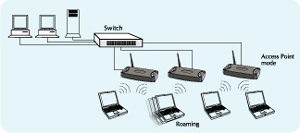

Enterprise or Campus Users
In an enterprise or campus area, some mobile
users may need a continuous network connection.
By
installing WAP-4030 in the area, mobile users easily
access the network connection by installing a
wireless card in notebook or PDA. The roaming capacity
allows users connected to the network to
transparently roam from one access point to another. |
| |
 |
| |
|
| [Key
Features] |
+ Compliant with the IEEE 802.11g/802.11b (DSSS)
2.4GHz specification
+ High data rate up to 54Mbps, Auto rate fallback
+ Seamlessly integrates wireless and wired Ethernet
LAN networks
+ Provides WPA-PSK, 64/128-bit WEP Encryption and
MAC Filter to protect the wireless data
transmissions
+ Supports DHCP client for auto IP addresses assignment
+ Provides a reverse-polarity SMA connector for
external antenna connection
+ Auto Fall-Back data rate for long-distance communication
and noisy environment
+ Supports 63 clients to connect the network. (For
best performance, the suggested maximum clients
number of one
WAP-4030 is 25)
+ Web-based configuration |
| |
|
| [SPECIFICATION] |
| |
|
Product |
| Model |
WAP-4030 |
| Standard |
IEEE
802.11g / 802.11b (Wireless) |
| Frequency
Band |
2.400~2.4835GHz |
| Transfer
Rate |
802.11g:
54/48/36/24/18/12/9/6Mbps 802.11b: 11/5.5/2/1Mbps |
| Modulation |
OFDM@54Mbps,
CCK@11/5.5Mbps, DQPSK@2Mbps and DBPSK@1Mbps |
| Sensitivity |
IEEE802.11b:
-92dBm @ 1Mbps
-89dBm @ 2Mbps
-87dBm @ 5.5Mbps
-82dBm @ 11Mbps
IEEE802.11g:
-91dBm @ 6Mbps
-90dBm @ 9Mbps
-87dBm @ 12Mbps
-82dBm @ 18Mbps
-82dBm @ 24Mbps
-78dBm @ 36Mbps
-71dBm @ 48Mbps
-71dBm @ 54Mbps |
| Channel |
FCC:
11 Channels (US, Canada)
ETSI: 13 Channels (Europe)
ELEC: 14 Channels (Japan) |
| Radio
Technology |
Direct
Sequence Spread Spectrum (DSSS) |
| Antenna |
External
detachable dipole antenna |
| Transmit
Power |
16”¾2dBm
(Typical) |
| LAN
Interface |
1-port
RJ-45 UTP |
| Cabling |
Category
5/5e or above, 4-pair |
| LED
Indicators |
3;
PWR, WLAN, LAN |
| Power |
12V
DC, 0.5A |
| Temperature |
0
~ 55 ”ĘC (Operating) |
| Humidity |
10
~ 90%, non-condensing (Operating) |
| Dimension |
169
x 87 x 30 (mm) |
| Weight |
155g |
| Emission |
FCC
class B, CE-mark |
|
|
|
| |
| [Ordering
Information] |
| WAP-4030.........
54Mbps Wireless LAN Access Point |
|
 |
| |
 |
|
|
|
|
|
|
