WL-U352 |
 |
| |
| [Overview].
|
| |
| 11Mbps Wireless
USB Adapter |
| |
 |
|
| |
With IEEE 802.11b standard-based, WL-U352 provides
11Mbps wireless networking for USB-enabled desktops
or notebooks. It can operate in either Ad-Hoc mode
(Point to Point/Point to Multipoint without Access
Point) or Infrastructure mode (Point to Point/Point
to Multipoint with Access Point).
WL-U352 provides with an internal patch antenna,
and thus making its size more compact. Regarding
the platform compatibility, WL-U352 supports most
popular operating systems including Windows 98SE,
Me, 2000, XP and Server 2003. Plus 64-bit and 128-bit
WEP (Wired Equivalent Privacy) Encryption feature,
WL-U352 offers a reliable and private wireless network
connection. Its data rate support 11, 5.5, 2 and
1Mbps. With its auto-fallback function, the data
rate can be move to lower speed if signal quality
is not good enough.
The WL-U352 provides full mobility and seamless
roaming feature for mobile users to keep network
connection across access points. Its range of coverage
is up to 300 feet indoor and 800 feet outdoor. |
| |
|
| [Product
Application] |

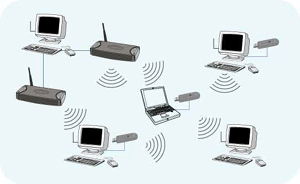

Infrastructure
WL-U352 provides access to a wired LAN for wireless
workstations. An integrated wireless and wired
LAN is called an Infrastructure configuration. An
Infrastructure configuration extends the accessibility
of
a WL-U352 equipped PC to a wired LAN, and doubles
the effective wireless transmission range for 2
WL-U352 PCs. Since the Access Point is able to forward
data within its Basic Service Set, the effective
transmission range in an infrastructure LAN is doubled. |
| |
 |
| |

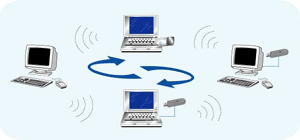

Ad-hoc
An Ad-Hoc wireless LAN is a group of computers,
and each is equipped with one WL-U352 adapter or
other wireless adapters, connected as an independent
wireless LAN. Computers in a specific Ad-Hoc wireless
LAN must be configured to share the same radio channel.
Ad-Hoc wireless LAN
configurations are appropriate for branch level
departments as well as SOHO operations. |
| |
 |
| |
|
| [Key
Features] |
+ 2.4GHz ISM band, unlicensed operation
+ Wireless connection without the hassles and costs
of cabling
+ Wireless LAN IEEE 802.11b compliant
+ Up to 11Mbps data rate with CSMA/CA
+ Utilizes Direct Sequence Spread Spectrum (DSSS)
Technology to provide robust,
interference-resistant
solution in a multi-user environment
+ Supports 64/128-bit WEP
+ Working range up to 300 feet indoor and 800 feet
outdoor
+ Supports Ad-Hoc / Infrastructure
+ Roaming capability to provide mobile computing
for mobile workers to access network resources anywhere
in the field
+ Seamless integration with IEEE 802.3 LAN through
IEEE 802.11b compliant Access Point
+ Supports most popular operating systems including
Windows 98SE/Me/2000/XP/Server 2003 |
| |
|
| [SPECIFICATION] |
| |
|
Product |
| Model |
WL-U352 |
| Attach
Interface |
USB
2.0, Type A |
| LED
Indicators |
1;
Link |
| Operating
Frequency / Channel |
2.412~2.462GHz
(FCC, Canada) / 11 Channels 2.412~2.4835GHz
(Japan, TELEC) / 14 Channels 2.412~2.472GHz
(Euro ETSI) / 13 Channels |
| RF
Modulation |
Direct
Sequence Spread Spectrum (DSSS) Technology (CCK,
DQPSK,
DBPSK) |
| RF
Output Power |
15dBm
|
| Data
Rate |
11,
5.5, 2, 1 Mbps with auto-rate fall back |
| Media
Access Protocol |
CSMA/CA
+ ACK, IEEE802.11b Compliant |
| Antenna |
Internal
patch antenna |
| Range |
Up
to 800 feet outdoor and 300 feet indoor |
| Working
Mode |
Ad-Hoc,
Infrastructure |
| Dimension |
76.5mm
x 26mm x 11mm (W x D x H) |
| Weight |
13g |
| Humidity |
10-95%,
non-condensing (Operating and storage) |
| Temperature |
0~55
degree C (Operating), -20~70 degree C (Storage) |
| Management |
Utility
or Windows XP / Server 2003 built-in management
interface |
|
|
|
| |
| [Ordering
Information] |
| WL-U352.........
11Mbps Wireless USB Adapter |
|
 |
| |
 |
|
|
|
|
|
|
