WAP-1963 |
 |
| |
| [Overview].
|
| |
| 11Mbps Wireless
Access Point (with Bridge Function) |
| |
 |
|
| |
The WAP-1963A is an access point for IEEE 802.11b
2.4GHz wireless network. You can use it to build
up a wireless LAN for all wireless LAN station to
join the wireless network. It supports the most
security functions such as WPA, 802.1X authentication
and 64/128-bit WEP (Wired Equivalent Privacy) Encryption
and MAC address filter to consolidate the wireless
network security; that can prevent unauthorized
wireless stations from accessing your wireless network.
WAP-1963A also offers a RADIUS-based access control
for the enterprise manage requirement.
Best of all the Bridge and Station modes, it provides
more elasticity for users creating their Wireless
Network. Connected to you LAN, it is able to access
the network via Access Point or join to a small
wireless network without Access Point. It's data
rate support 11, 5.5, 2 and 1 Mbps. Maximize network
efficiency while minimizing your network investment
and maintenance costs.
The product provide easy to use user interface and
allows users to configuring from web browser. Also
it integrates DHCP server to provide multiple wireless
and wired users to get an IP address automatically.
With the versatile of features, the product is the
best choice for you to integrate your wireless and
wired network seamlessly. |
| |
|
| [Product
Application] |

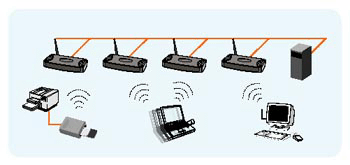

Enterprise or Campus Users
In an enterprise or campus area, some mobile users
may need a continuous network connection. By
installing 11Mbps access points in the area, mobile
users can be always on the network by installing
a wireless card in their notebook or PDA. The roaming
capacity allows users connected to the network
to transparently roam from one access point to another. |
| |
 |
| |

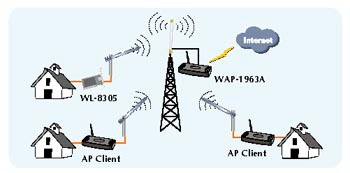

Wireless ISP
A first mile solution now is simple with PLANET's
wireless devices. No wiring is needed and the
provided bandwidth can be up to 11Mbps. By installing
PLANET's wireless access point equipped
with omni-directional antenna in the user's neighborhood,
all users around the access point can
easily connect to Internet through the access point
by installing a wireless PCI card or a WAP-1963
in
AP client mode. By using a directional antenna,
the distance between users and AP can be a few
kilometers. |
| |
 |
| |

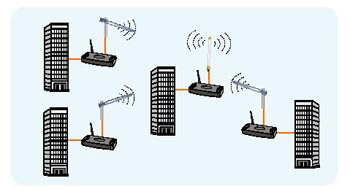

LAN to LAN or LAN to Multi-LAN
Wiring inside your own building may be an easy job,
but it is hard if network cabling needs to route
through some public areas or difficult wiring environments.
PLANET's 11Mbps Wireless access point,
the WAP-1963A, can work in bridge or repeater mode
to provide a robust solution for connecting two
or
more buildings wired Ethernets together. By extending
distance using PLANET's external antenna, the
installation is easy and the distance between buildings
can be 10km or more. |
| |
 |
| |
|
| [Key
Features] |
+ Wireless LAN IEEE802.11b compliant
+ Up to 11Mbps wireless LAN
+ 2.4GHz ISM band, unlicensed operation
+ Wireless connection without the hassles and cost
of cabling
+ Utilize Direct Sequence Spread Spectrum (DSSS)
Technology
+ Supports Wireless AP/Station mode
+ WPA, 802.1X authentication
+ 64bit/128bit WEP encryption
+ MAC Address Filter
+ DHCP Server
+ 11Mbps performance will meet most foreseeable
networking needs
+ Wireless LANs are tremendously convenient, help
to enhance productivity, and provide a real cost
benefit over
traditional wired network (no installation or maintenance
expensed)
+ Provide Web Configuration |
| |
|
| [SPECIFICATION] |
| |
|
Product |
| Model |
WAP-1963A |
| Standard |
IEEE
802.11b (Wireless), IEEE 802.3 (Wired) |
| Frequency
Band |
2.400~2.4835GHz |
| Transfer
Rate |
11/5.5/2/1Mbps,
auto fallback |
| Modulation |
CCK@11/5.5Mbps,
DQPSK@2Mbps and DBPSK@1Mbps |
| Radio
Technology |
Direct
Sequence Spread Spectrum (DSSS) |
| Antenna |
External
detachable dipole antenna |
| Transmit
Power |
18dBm
(Typical) |
| Antenna
Gain |
2dBi |
| Work
Modes |
AP
Station - Ad Hoc
Station - Infrastructure
AP Bridge - Point to Point
AP Bridge - Point to Multi-Point
AP Bridge - WDS |
| LAN
Interface |
1-port
RJ-45 UTP |
| Cabling |
Category
5/5e or above, 4-pair |
| LED
Indicators |
3;
PWR, WLAN, LAN |
| Power |
12V
DC, 0.5A |
| Temperature |
0
~ 55 degree C (Operating) |
| Humidity |
10
~ 90%, non-condensing (Operating) |
| Dimension |
160
x 87 x 28 (mm) |
| Weight |
200g |
| Emission |
FCC
class B, CE-mark |
|
|
|
| |
| [Ordering
Information] |
| WAP-1963A.........
Cost effective 11Mbps Wireless Access Point w/bridge,inter-building |
|
 |
| |
 |
|
|
|
|
|
|
