11Mbps Wireless Access Point
The WAP-1963 is an access point for IEEE 802.11b 2.4GHz wireless network. You can use this access
point to build up a wireless LAN for all wireless LAN station to join the wireless network. It supports
64/128-bit WEP (Wired Equivalent Privacy) Encryption and MAC address filter function to consolidate
the wireless network security, that can prevent unauthorized wireless stations from accessing your
wireless network.

With it's Station mode, WAP-1963 can served as a wireless station (Infrastructure or Ad-Hoc) to
connected to you LAN. It is able to access the network via Access Point or join to a small wireless
network without Access Point. It's data rate support 11, 5.5, 2 and 1 Mbps. Maximize network
efficiency while minimizing your network investment and maintenance costs.

This product provides easy to use user interface and allows users to configuring from web browser.
Also it integrates DHCP server to provide multiple wireless and wired users to get an IP address
automatically. With the versatile of features, this product is the best choice for you to integrate your
wireless and wired network seamlessly.

   [Product Application]

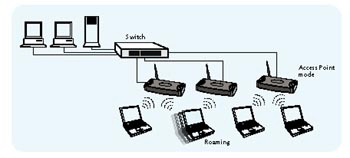

AP mode
In an enterprise or campus area, some mobile users may need a continuous network connection. By installing WAP-1963 11Mbps access points in the area, mobile users can be always on the network by installing a wireless card in their notebook or PDA. The roaming capacity allows users connected to the network to transparently roam from one access point to another.

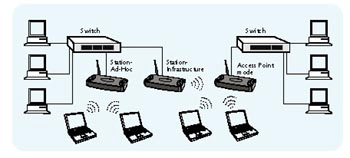

Station Mode
Infrastructure: Served as a wireless station (infrastructure). Connected to you PCs, it is able to access the network via Access Points. WAP-1963 soon makes your connected PCs as wireless end node.
Ad-Hoc: Served as a wireless station (Ad-hoc). Connected to your PCs, this station adapter along with other wireless stations can establish a small wireless network without Access Points.
   [Key Features]
+ Wireless LAN IEEE802.11b compliant
+ Up to 11Mbps wireless LAN
+ 2.4GHz ISM band, unlicensed operation
+ Wireless connection without the hassles and cost of cabling
+ Utilize Direct Sequence Spread Spectrum (DSSS) Technology
+ Supports Wireless AP/Station mode
+ 64bit/128bit WEP encryption
+ Support MAC Address Filter
+ Support DHCP Server
+ 11Mbps performance will meet most foreseeable networking needs
+ Wireless LANs are tremendously convenient, help to enhance productivity, and provide a real cost
   benefit over traditional wired network (no installation or maintenance expensed)
+ Provide Web Configuration





IEEE 802.11b (Wireless), IEEE 802.3 (Wired)

Frequency Band


Transfer Rate

11/5.5/2/1Mbps, auto fallback


CCK@11/5.5Mbps, DQPSK@2Mbps and DBPSK@1Mbps

Radio Technology

Direct Sequence Spread Spectrum (DSSS)


External detachable dipole antenna

Transmit Power

18dBm (Typical)

Antenna Gain


Work Modes

AP Station - Ad Hoc Station - Infrastructure

LAN Interface

1-port RJ-45 UTP


Category 5/5e or above, 4-pair

LED Indicators



12V DC, 0.5A


0 ~ 55 degree C (Operating)


10 ~ 90%, non-condensing (Operating)


160 x 87 x 28 (mm)




FCC class B, CE-mark

   [Ordering Information]
WAP-1963......... Cost effective 11Mbps Wireless Access Point
